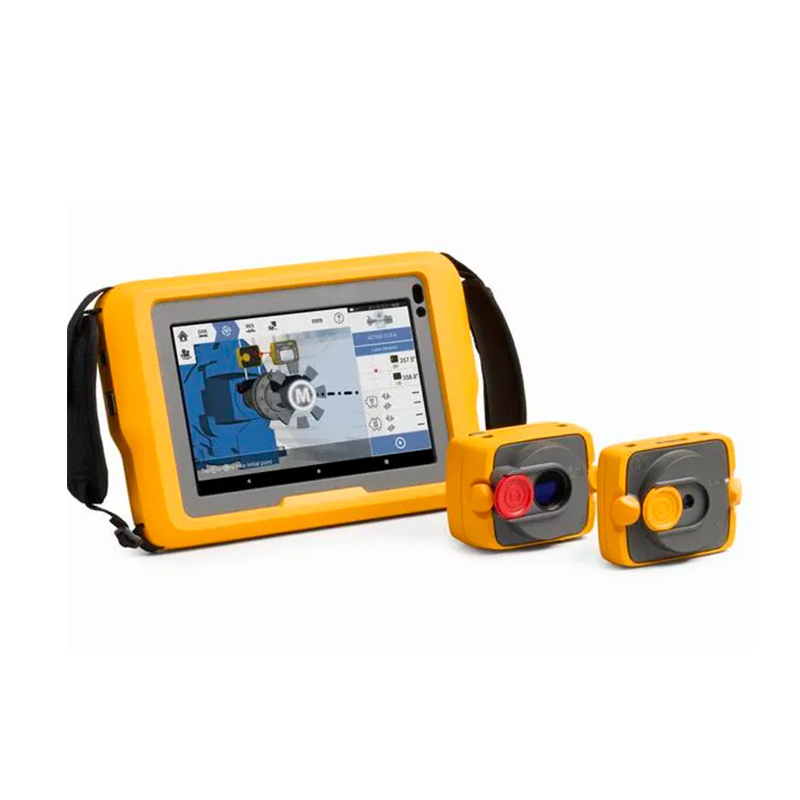

福禄克Fluke 832激光对中仪

-

  • Single-laser, dual-detector precision

  • Simple, easy setup

  • Simultaneous Live Move (horizontal & vertical)

  • Soft Foot correction

  • 8-Point Active Clock

  • Automatic out-of-range notifications


查看更多
咨询热线： 13410391245
在线咨询
  • 产品概要


    Faster setup, fewer steps

    Faster setup, fewer steps Fluke 832 uses a single-laser, dual-detector system that makes shaft alignment quicker on standard rotating machines.

    • Skip the pre-alignment and go straight to measurement

    • Mount one laser and one sensor to start aligning

    • Get precise results in fewer moves and less time


    Real-time guidance you can trust

    Live feedback helps you adjust the machine confidently during every shaft alignment, finishing each job faster and more accurately.

    • Monitor corrections simultaneously on both vertical and horizontal planes

    • Receive automatic out-of-range notifications

    • Verify results instantly with Quality Factor and Standard Deviation


    Versatile measurement options

    Whether rotation is full or limited, Fluke 832 adapts to the job without compromising accuracy.

    • Choose between Continuous Sweep or 8-Point Active Clock

    • Use static machine or multiple foot positions, depending on setup

    • Measure reliably even with uncoupled shafts


    Built-in workflows for tricky alignments

    Address common field complications without switching systems or losing time.

    • Identify and correct Soft Foot before starting alignment

    • Reliable operation even on complex base conditions


    Smarter reports, clearer ROI

    Track, document, and share alignment results that the whole team can use.

    • Generate clear, customized alignment reports

    • Automatically log asset-specific IDs and measurements

    • Unlock the Built-in ROI calculator feature to see long-term savings

    • Email results quickly via built-in templates

  • 型号及配件
  • 技术指标

    CPU

    Processor:Octa-Core (8): 2.2 GHz (2) and 1.8 GHz (6)

    Memory:4 GB LPDDR4X SDRAM/64 GB UFS Flash

    Display

    Technology:Corning® Gorilla® Glass

    Resolution:600 nits, color WXGA 1280x800

    Dimensions:8 inch/20.3 cm

    Power supply

    Operating time:Up to 11 Hours

    Battery:6100 mAh 3.87 V rechargeable Li-Ion Polymer; (23.61 Wh)

    Charging:USB-C

    Connectivity

    Wifi:IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax 2x2 MU-MIMO; Wi-Fi® certified; IPv4, IPv6 (Wi-Fi 6)

    Bluetooth:Bluetooth v5.1 / 2.1+EDR Class 2 (Bluetooth LE)

    RFID:Integrated RFID with read and write capabilities Docking connector (charge and data)

    USB-C side port (tablet charging and data only)

    Environmental protection

    IP 65:Dustproof and water jets resistant

    Relative humidity:5% to 95% non-condensing

    Drop test

    1.2 m (4 ft)

    Temperature range

    Operation:-20°C to 50°C (-4°F to 122°F)

    Storage:-40°C to 70°C (-40°F to 158°F)

    Dimensions

    267 mm L x 171 mm H x 35 mm D 10 33/64" x 6 47/64" x 1 3/8"

    Weight

    930 g/2.1 lbs

    Camera

    Rear:Image capture: 13 MP auto-focus camera with user controllable LED flash

    Front:5MP

    CE conformity

    Refer to the CE compliance certificate

    Carrying case

    Dimensions595 x 355 x 115 mm (23 1/2" x 14" x 4 1/2")

    Type

    6-axis:2 planes (4 displacement axes and 2 angles)

    Measurement

    Optical range:14 x 14 mm (0.55 x 0.55 in.)

    Area:Unlimited, dynamically extendible

    Resolution:1 μm (0.04 mil); Angular 10 μRad

    Error:< 2%

    Transmitted rate:Approx. 20 Hz

    Inclinometer

    Resolution:0.1°

    Error:Roll +-1°; Pitch +- 3°

    LED indicators

    1 LED for laser adjustment, battery and charge status; 1 LED for BT communication

    Power supply

    Battery:Lithium-Ion rechargeable battery 3.7 V, 4.7 Wh

    Operating time:30 hours (continuous use)

    Charging time:2.5 h for up to 80%; 4 h for up to 100%

    Charging:USB-C

    External interface

    Integrated low power 2.4 GHz Radio (BT LE); USB 2.0 Full Speed

    Radio transmission distance

    Up to 50 m (160 ft) direct line of sight

    Environmental protection

    IP 65:Dustproof and water jets resistant, shockproof

    Relative humidity:10% to 90%

    Ambient light protection

    Optical and active electronic digital compensation

    Temperature range

    Operation:-10°C to 50°C (14°F to 122°F)

    Charging:0°C to 35°C (32°F to 95°F)

    Storage:-20°C to 50°C (-4°F to 122°F)

    Dimensions

    Approx. 104 x 72 x 54 mm (4 1/8" x 2 13/16" x 2 1/8")

    Weight

    Approx. 231 g (8.2 oz)

    CE conformity

    Refer to the CE compliance certificate

    Type

    Semiconductor laser diode

    Laser

    Power:< 1 mW

    Divergence:0.3 mrad

    Wavelength:630-640 nm (red, visible)

    Separation distance:Up to 10 m

    Adjustment:No

    Safety class:Class 2 according to IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019. Safety precaution: Do not look into laser beam

    Inclinometer

    Resolution:0.1°

    Error:Roll +-1°; Pitch +- 3°

    Error:Roll +-1°

    LED indicators

    1 LED for battery and charge status

    Power supply

    Battery:Lithium-Ion rechargeable battery 3.7 V, 4.7 Wh

    Operating time:30 hours (continuous use)

    Charging time:2.5 h for up to 80%; 4 h for up to 100%

    Charging:USB-C

    Operating time:40 hours (continuous use)

    Charging time:2.5 h for up to 80%; 4 h for up to 100%

    Charging:USB-C

    Environmental protection

    IP 65:Dustproof and water jets resistant, shockproof

    Relative humidity:10% to 90%

    Relative humidity:10% to 90%

    Temperature range

    Operation:-10°C to 50°C (14°F to 122°F)

    Charging:0°C to 35°C (32°F to 95°F)

    Storage:-20°C to 50°C (-4°F to 122°F)

    Charging:0°C to 35°C (32°F to 95°F)

    Storage:-20°C to 50°C (-4°F to 122°F)

    Dimensions

    Approx. 101 x 75 x 37 mm (4” x 2 15/16” x 1 7/16”)

    Weight

    Approx. 190 g (6.7 oz)

    CE conformity

    Refer to the CE compliance certificate
